Cold-to-Cold Gas Turbine expansion joint for Insulated Reliability

Overview

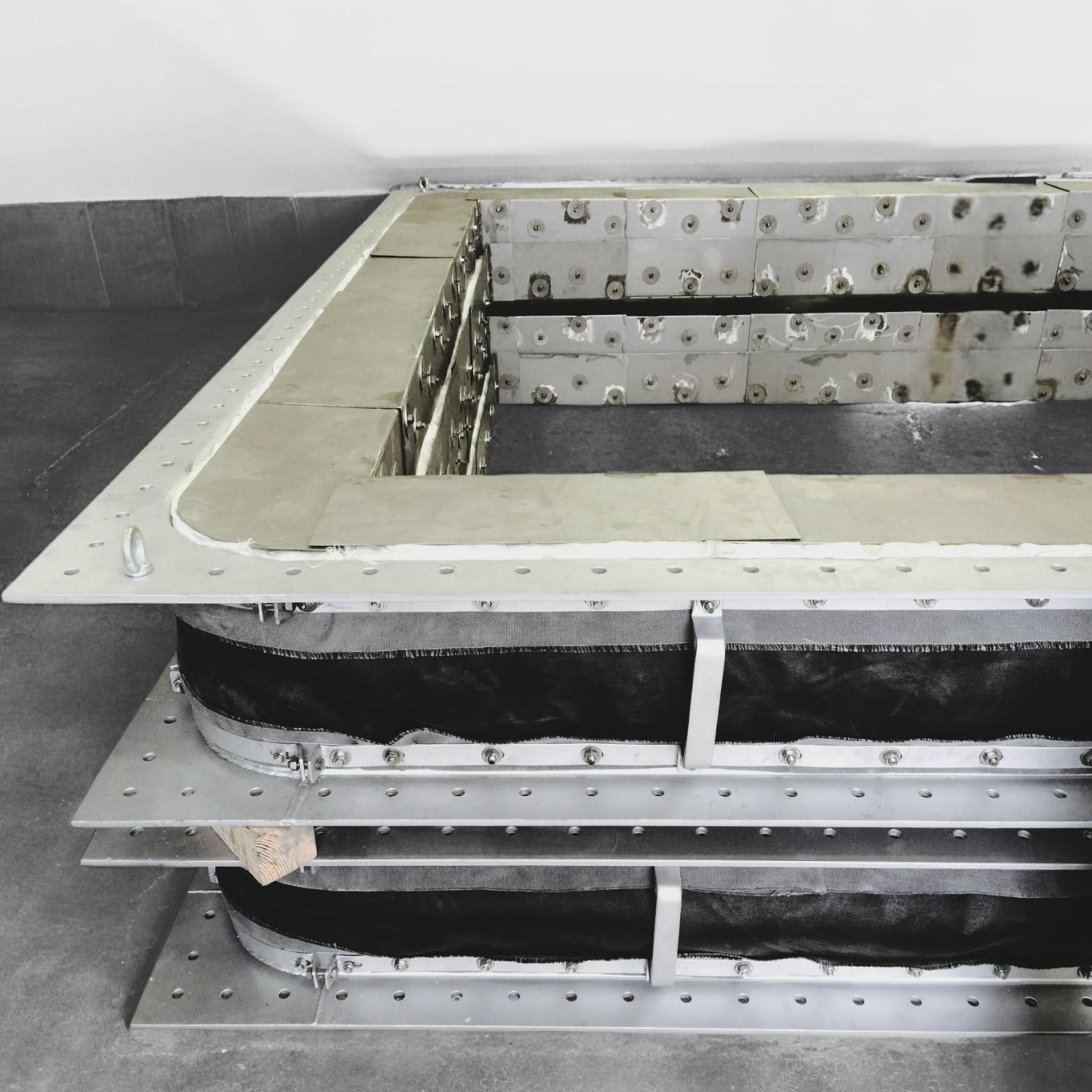

The Cold-to-Cold Gas Turbine expansion joint is designed to provide a reliable connection in gas turbine regions where both connection flanges are internally insulated. This expansion joint excels in managing thermal expansions while protecting the expansion joint frame from direct exposure to hot gas flow, ensuring durability and high performance.

Solution: Innovative Design for Enhanced Reliability

The expansion joint incorporates advanced engineering features to address the challenges of gas turbine environments:

Slotted guide plates: Mounted using welded studs (gijons) on the connection flanges, allowing the plates to move freely within the slotted holes in response to temperature-induced expansion.
Thermal stress management: The design enables effective absorption of thermal expansions, reducing structural stress and extending system lifespan.
Insulated protection: Ensures no part of the expansion joint frame is exposed to hot gas flow, enhancing durability and minimizing maintenance needs.

This innovative design ensures reliable operation under the demanding conditions of gas turbines while maintaining system integrity and performance.

High Efficiency and Durability

The Cold-to-Cold Gas Turbine expansion joint is engineered to enhance energy production efficiency. Its insulated structure minimizes energy losses and supports operational continuity, making it an ideal solution for gas turbine applications.

By combining durability, high performance, and low maintenance, this expansion joint meets the stringent demands of the energy sector.

Why Choose Bundletec?

Bundletec’s Cold-to-Cold Gas Turbine expansion joint delivers unmatched reliability and efficiency through advanced engineering and high-quality materials. Our solutions are tailored to meet the toughest challenges in gas turbine operations.

For more details on our expansion joint solutions, visit our expansion joints page to explore our full range of products.
